3.3.4. Mapping Rules Analysis

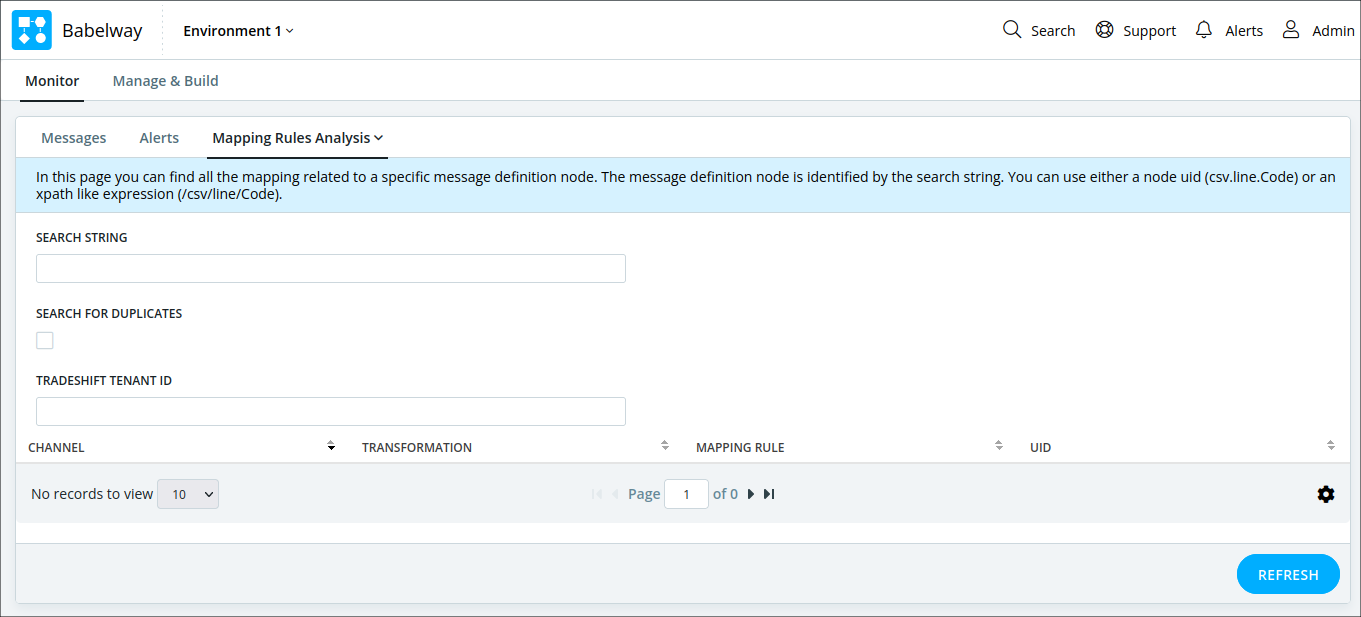

This screen allows you to search and find all the mapping related to a specific message definition out node only.

The message definition node is identified by the search string.

You can use either a node uid (csv.line.Code) or an xpath like expression (/csv/line/Code).

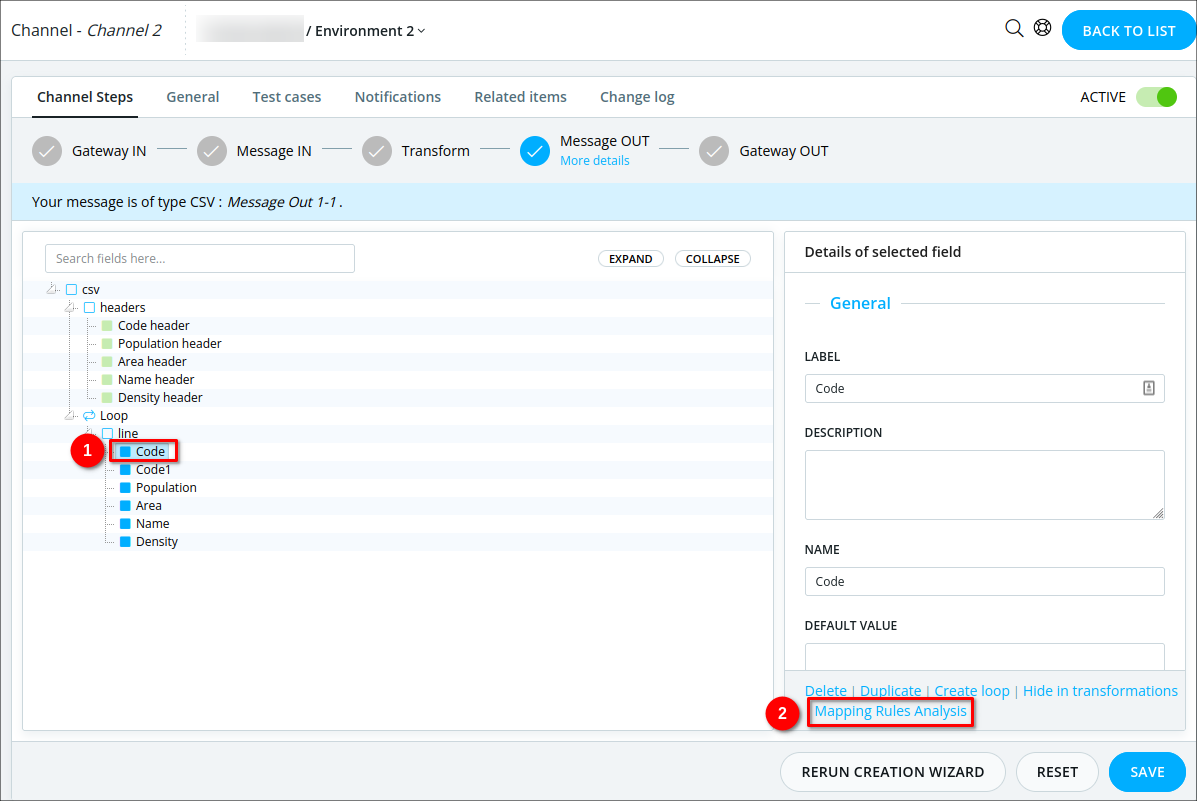

You can also be directed to the monitoring "Mapping Rules Analysis" screen from the "Message Out" tree page by selecting any node from the "Message Out" tree then click "Mapping Rules Analysis", as shown below.





Search string

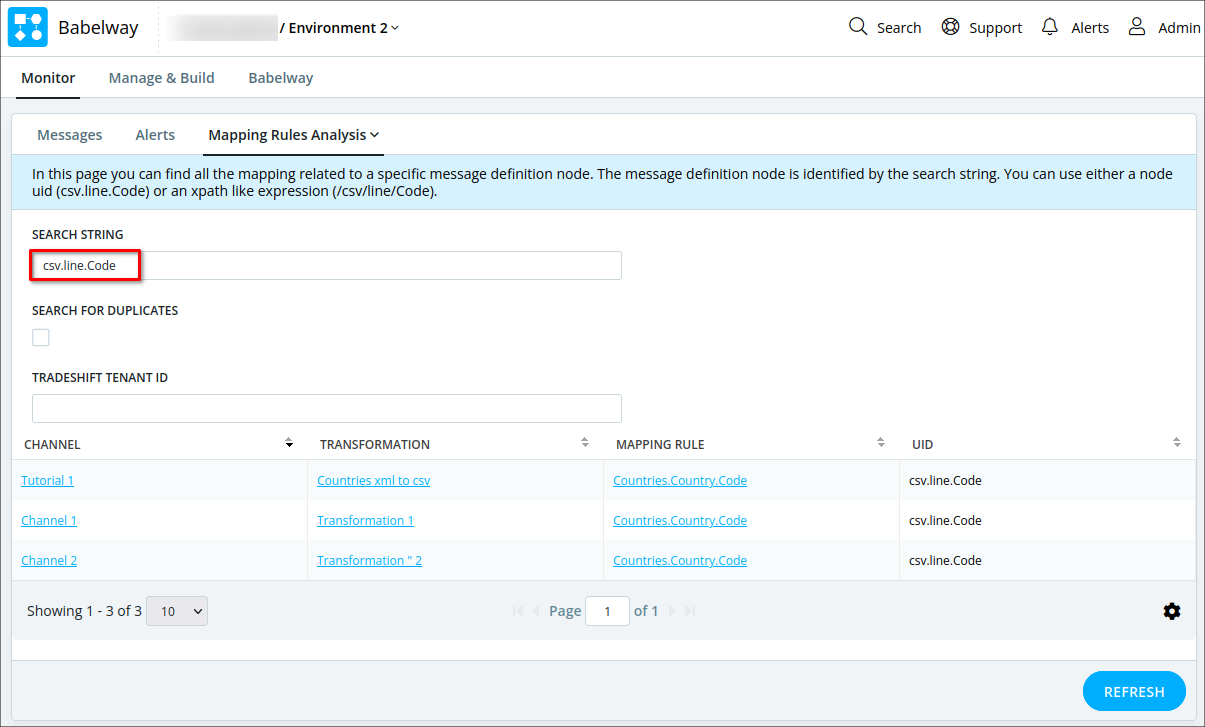

Search string can be either an xpath like expression or a node uid.



Search for duplicates

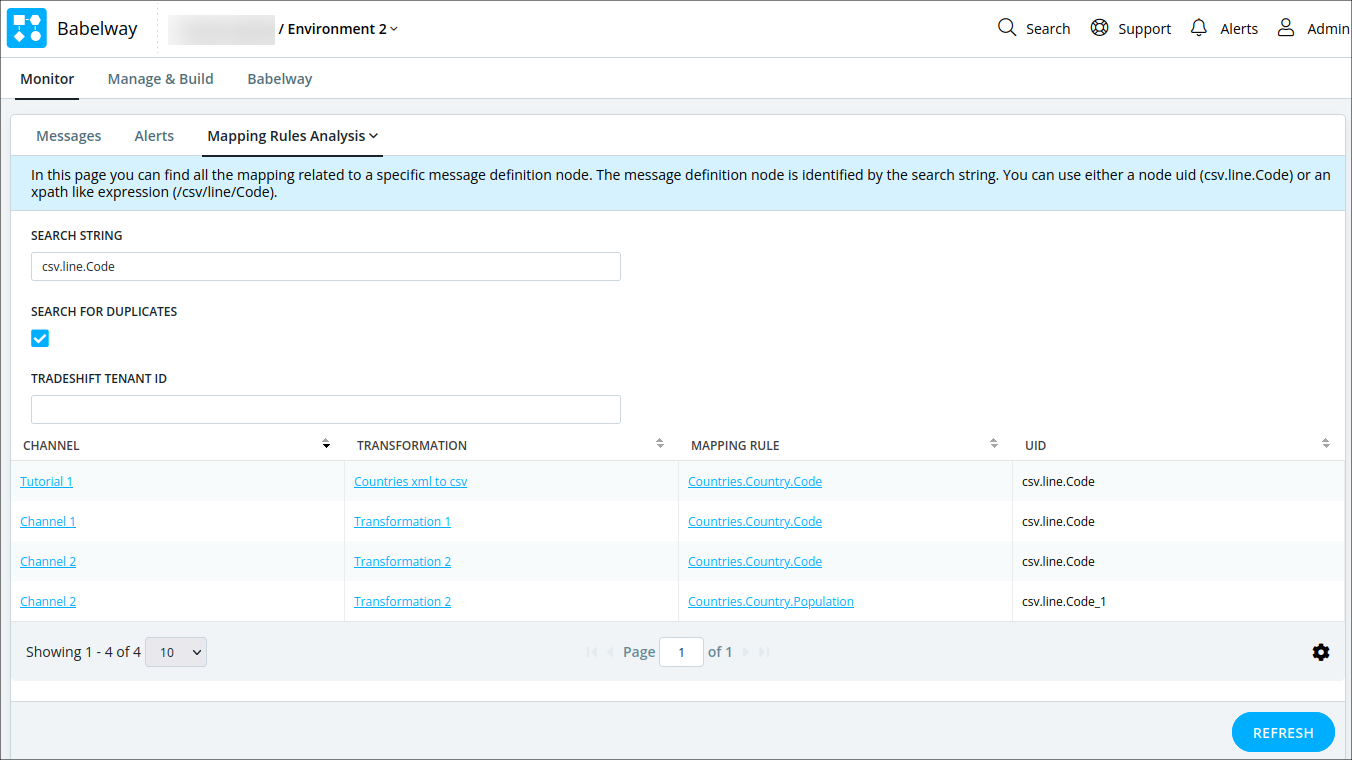

If selected also node with the same search string but different cardinality will be searched for. For example for csv.line.Code, csv.line.Code_1 and csv.line_2.Code will also be shown if present.



Tradeshift tenant id

Tradeshift tenant id of the supplier for which we are looking at the mapping.

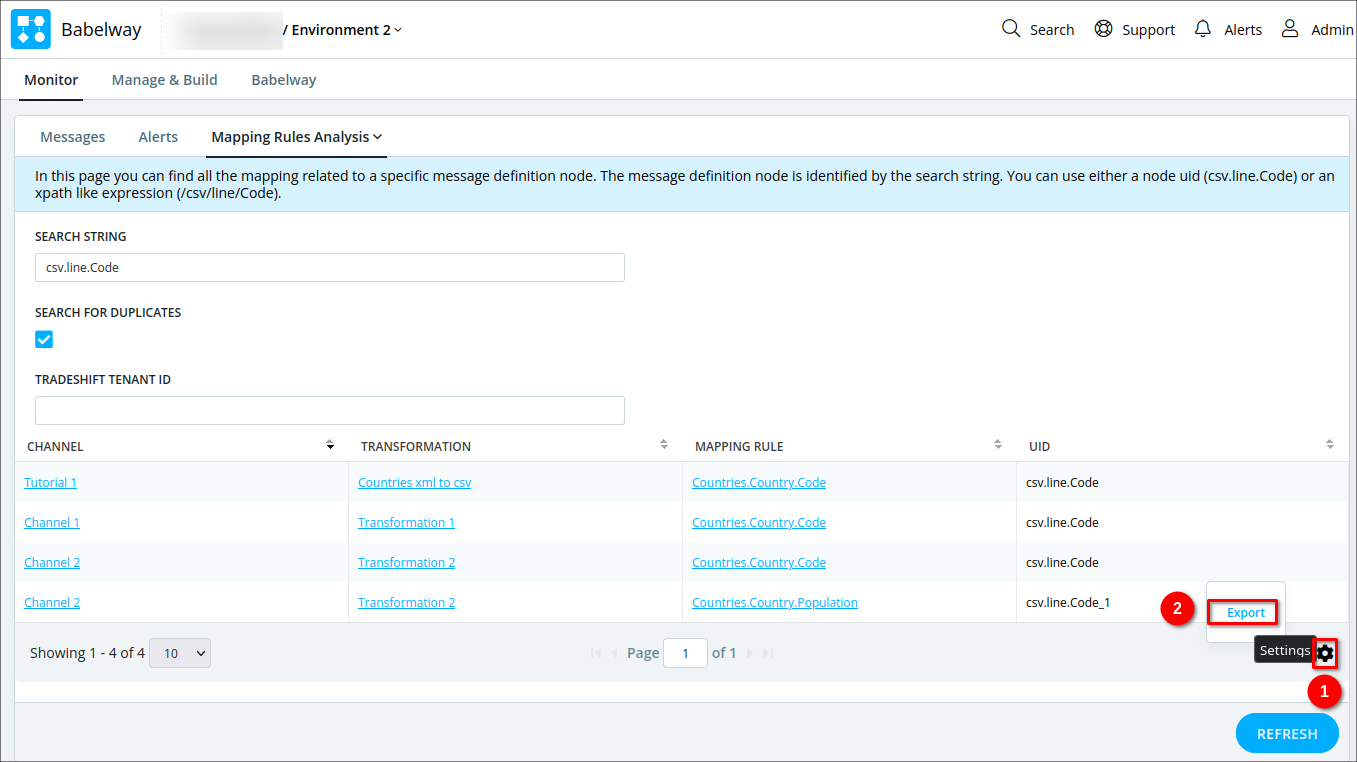

To export the mapping rules analysis results list from setting click "Export".
