4.3.5.2. MessageDefinition OUT – Babelway

The available extra processings on MessageDefinitions OUT are :

Xslt transformer
Document extractor
Reject Duplicates
Line delimiter converter
Xml Signer
Pdf wrapping
Pdf resizer
Pdf Letterhead
Pdf Appendix
Add attachments to a pdf
PdfA converter
Pdf signer
Zip wrapping
PGP wrapping
MIME wrapping
Replacement based on regular-expressions.
Create messages from metadata
Message Validation (Deprecated)
Automatically close errors
Replace message content by metadata
Report success
Report success by mail
Report error
Report error by mail

Xslt transformer

Applies an xslt to correct your message. It is applied on the internal xml representation of the message (before the message is converted to the output format).

Be aware that the output of your transformation must be compatible with the internal representation of Babelway for this message format.

The parameters are :

Xslt

The transformation that must be applied.

Document extractor

Allows you to extract any information in the output message to be able to view it directly in the monitor page.

As an example, suppose that you want to extract some information from the output message to be able to view it directly in the monitor page.

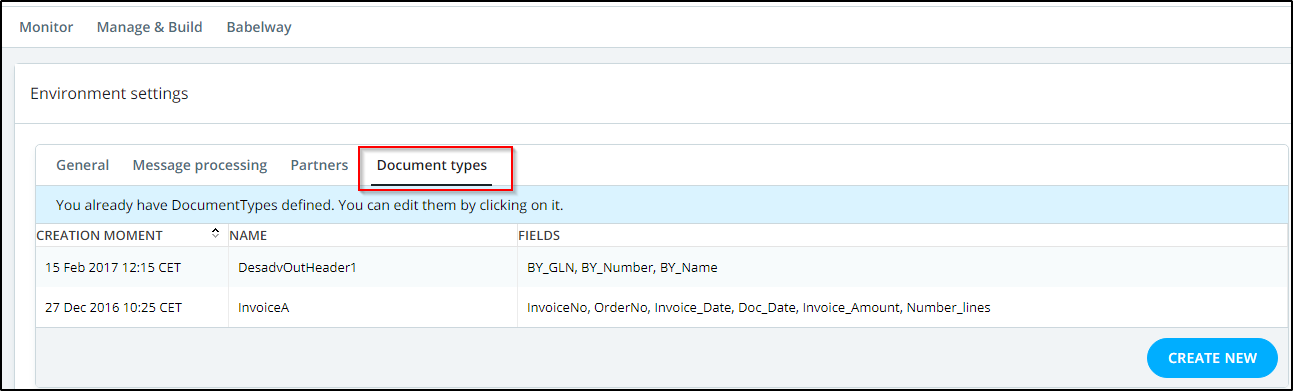

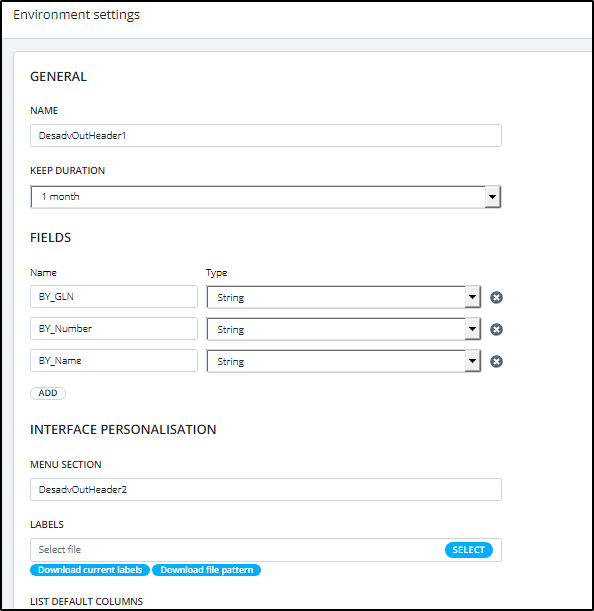

First, create the "Document type" you want to use from "Admin / Environment settings / Document types".

Based on the information you want to store, you will need to create its corresponding document type, as shown below.

Document types

Note: For more information about the Document types you can check this link Document types.

Then, create this extra processing in the "Message Out" and after that click on "Edit" to map the fields you want to extract, as shown below.

Extra processings

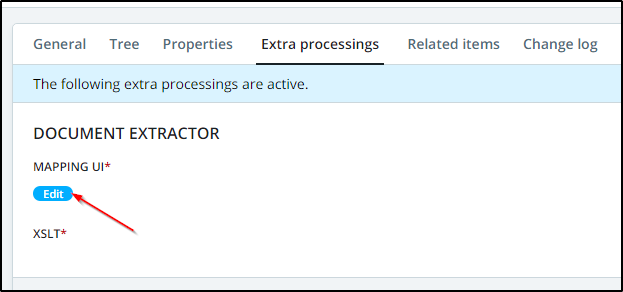

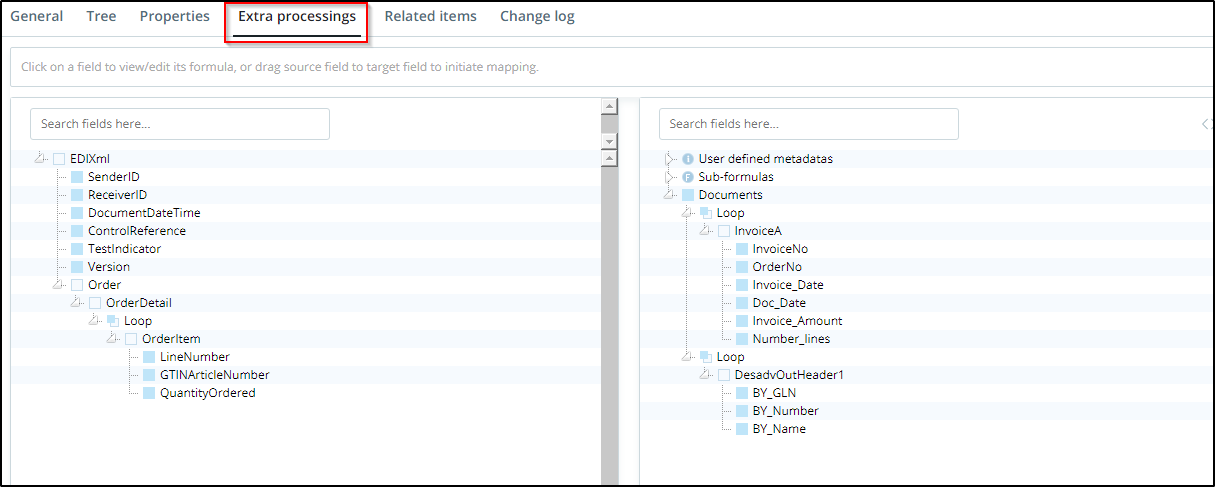

After that, begin mapping the fields from the input message you want to extract to the fields in this document type, as shown below.

Mapping

To be able to view the extracted information, go to monitoring and then based on the "name of the document you used" ("orders" in this case), click on it to view the extracted information, as shown below.

Monitoring

Note: In order for the new document type to be displayed in the Monitoring page after using it in it's corresponding channel or channels you will need to deploy your environment in order to push this changes to production and the new document will be displayed in the Monitoring page, as shown below.

Deploy your environment

Reject Duplicates

This extra processing allows you to identify and reject duplicate messages from the message out stage which mean that the message already passed through transformation stage where you can manipulate it the way you like to adjust the duplicate rejection process, for example creating metadata within the transformation and reject duplicate message based on the metadata value.

When a message comes in, it passed through transformation till message out generation, it is identified by a key (it can be the file name, a hash of the message "MD5/SHA265", an xpath or regex extract of the message, or a metadata value). This key is then checked against previously recorded keys in a dedicated lookup table. If the message matches an existing entry, it is set in error.

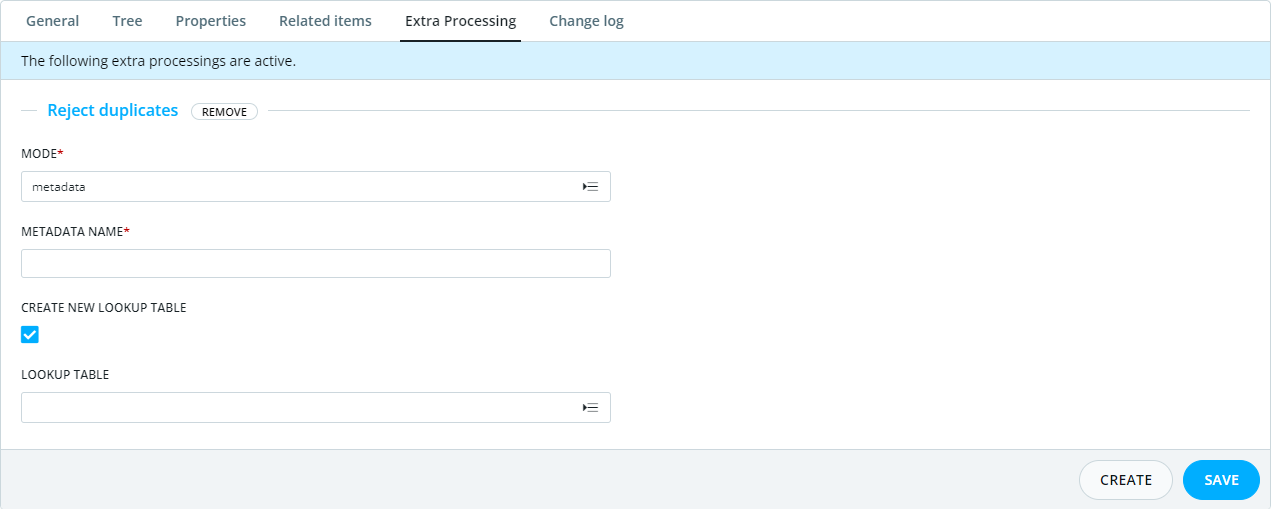

This is how reject duplicate extra-processing looks like.

Mode

Indicates the way to identify the message's unicity: MD5 hash, 256 hash, xpath or regex extraction, file name, or metadata value.

Create new lookup table

Check this box to indicate that you'd like the system to create a new lookup table rather than use the one in the field (lookup table)

Lookup table

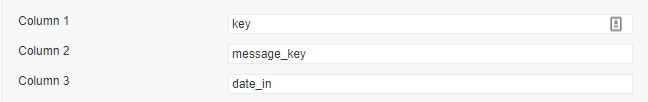

Lookup table which will be collecting your message identifiers, the babelway message key, and the date at which the message came in. The table requires the exact following structure:

You may complete the lookup table with any additional information but any change to these first three columns will break the functionality.

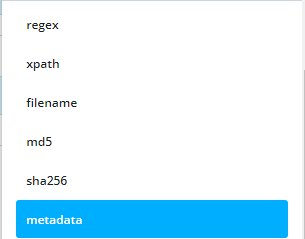

This is the mode list you can use in the duplicate rejection process.

REGEX

In the regex mode, the pattern is the regular expression to extract the unique identifier from the generated message out and reject it if the unique identifier already exists in the lookup table

Xpath

In the Xpath mode, the pattern is the Xpath expression to extract the unique identifier from the generated message XML out and reject it if the unique identifier already exists in the lookup table

File Name

In the File name mode, the file name of the generated message will be the unique identifier and the message will be rejected if the unique identifier already exists in the lookup table

MD5/SHA256

In this mode, the message hashing algorithm either MD5 or SHA256 of the generated message will be the unique identifier and the message will be rejected if the unique identifier already exists in the lookup table

Metadata

In this mode, the value stored in the metadata will be the unique identifier and the message will be rejected if the unique identifier already exists in the lookup table

Note: The MD5 or SHA256 mode will be used if you want to compare the whole content of the message. This is a good idea if your duplicate is an exact copy of the current message. But if there are spaces that vary, or if the date can vary for example, then one shouldn't use this because the hashes won't match and duplicates will get through.

Line delimiter converter

Converts all line delimiters to the line delimiter that you choose. The original file can have its line delimiters in any style (Unix, Windows, Mac).

The parameters are:

Line delimiter

The line delimiter that you want to use in your output file.

Note: The line delimiter for Unix / OSX is \n, The line delimiter for Windows is \r\n, The line delimiter for Mac is \r.

Xml Signer

Signs an Xml.

The parameters are:

Key alias	Alias of the key (in your keystore) that will be used to sign the Xml.
Digest method	The digest method that will be used during the signature of the Xml.
Signature Method	The signature method that will be used to sign the Xml.
Signature transformation	The transformation that will be used to sign the Xml. You have the choice between an inclusive Canonicalization or an enveloped signature.
Xpath to the target node's URI	The Xpath that will allow the extraction of the URI of the root node of the subtree that needs to be signed. If not defined, the whole xml document will be signed.

Pdf wrapping

Allows you to create a pdf that will contain your output file in attachment.

The parameters are:

Pdf from template	The template that will be used to create and contain the pdf. There are 4 possibilities: You directly provide a pdf file. This pdf file will be used as it is, and the extra processing will just add the requested pdf attachments. You provide an xhtml template for the pdf. This template will be converted into a pdf. This option can be useful if you want to use some metadata in your pdf template (current date, ...). In the parameter 'Pdf from metadata', You provide the name of a metadata containing the pdf you want to use. This metadata must have been populated earlier in the process of the message. You don't provide any file. A default (empty) pdf template will be used. This option can for example be useful if the pdfWrapper is only used to benefit from the pdf digital signature functionality.
Pdf from metadata	The name of the metadata containing the pdf. This metadata must have been populated earlier in the process of the message, for instance by extracting it from a zip file.
File name	The name that your output file will have in the pdf.
File description	The description that your output file will have in the pdf.
Attachments	Other files that must be added to the pdf. For each individual file, you will have to state the name that the file will have in the pdf, and the name of the metadata that contains the content.

Pdf resizer

Allows you to resize an output pdf.

The parameters are:

Page size	The page size requested for the new pdf (A4, A5, LETTER, ...). The default is A4.
Offset X	Specifies the zone in the input pdf that will be copied to the output pdf. The default is 0.
Offset Y	Specifies the zone in the input pdf that will be copied to the output pdf. The default is 0.
Position X	Specifies where the zone copied from the input pdf will be placed on the page in the output pdf.
Position Y	Specifies where the zone copied from the input pdf will be placed on the page in the output pdf.
Scale X	Specifies the zoom ratio that must be applied when copying requested zones from the input to the output pdf. The default is 1.
Scale Y	Specifies the zoom ratio that must be applied when copying requested zones from the input to the output pdf. The default is 1.

Pdf Letterhead

Allows you to set a letterhead to your output pdf file.

The parameters are:

Letterhead pdf

The pdf file that contains the letterhead.

Page order

When the letterhead pdf contains multiple pages, it tells you which page of the letterhead must be used for every page of the output pdf file. The possible values are described hereafter. For every value, we also show as an example the result of the association for an output pdf file that would contain 5 pages (1, 2, 3, 4 and 5) and a letterhead pdf that would contain 2 pages (A, B).

Match forward. Repeat last page. Starting from the first page, all pages of the two pdfs are used together. If the output pdf has more pages than the letterhead model, the last page of the letterhead is used for all the subsequent pages. In our example, it would give the following result : 1:A, 2:B, 3:B, 4:B, 5:B.
Match backward. Repeat first page. starting from the last page, all pages of the two pdfs are used together. If output pdf has more pages that the letterhead model, the first page of the letterhead is used for all the previous pages. In our example, it would give the following result : 1:A, 2:A, 3:A, 4:A, 5:B.
Repeat all pages. All pages of the letterhead are repeated until the end of the output pdf. In our example, the following result would be: 1:A, 2:B, 3:A, 4:B, 5:A.

Pdf Appendix

Allows you to add extra pages to your output pdf file.

The parameters are:

Pdf to add

The pdf file that wil be appended at the end of the existing pdf.

Add attachments to a pdf

Allows you to add attachments to your output pdf file.

The parameters are:

Files to add

The attachments that must be added to the pdf. For every attachment, you have to state the name that the file will have in the pdf, and the name of the metadata that contains the content.

PdfA converter

Transforms a pdf to make it PDFA1B compliant. Also you are able to convert documents to valid PDF/A-3U documents - in addition to the good old PDF/A-1B ones. A PDF/A document can be identified as such through PDF/A-specific metadata located in the http://www.aiim.org/pdfa/ns/id/ namespace.

Pdf signer

Allows you to sign your output pdf file.

The parameters are:

Key alias	Alias of the key (in your keystore) that will be used to sign the pdf.
Pdf password	The password of your pdf (if your pdf is secured by a password).
Reason	Text that will be associated to the signature.
Show signature ?	Allows you to add an image to your pdf to show the signature.
Signature lower left X	Position (lower left X) where the signature image will be displayed. Only if you choose to show the signature.
Signature lower left Y	Position (lower left Y) where the signature image will be displayed. Only if you choose to show the signature.
Signature upper right X	Position (upper right X) where the signature image will be displayed. Only if you choose to show the signature.
Signature upper right Y	Position (upper right Y) where the signature image will be displayed. Only if you choose to show the signature.
Signature image	Image used to show the signature. Only if you choose to show the signature.
Timestamp method	Allows you to timestamp your output pdf.
Timestamp authority url	If you choose the external as timestamp method, the url to be called for the timestamping.
Timestamp authority login	If you choose the external as timestamp method, the optional login to use for the call.
Timestamp authority password	If you choose the external as timestamp method, the optional password to use for the call.

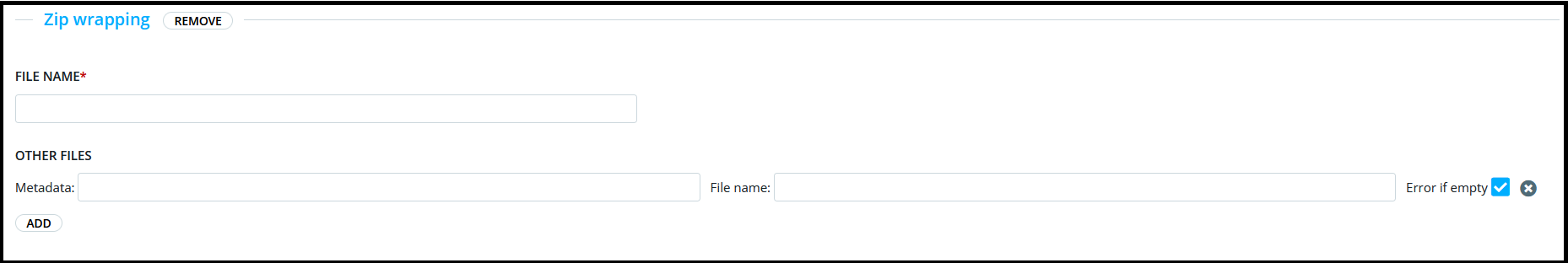

Zip wrapping

Allows you to wrap your output file from a zip. It also allows you to add other files in the zip.

The parameters are:

File name

The name that your output file will have in the zip.

Other files

Other files that must be added to the zip. Metadata = Pattern to match the metadata containing the file to attach. Filename = name of the file in the zip. If one pattern matches multiple files, it is possible to put them all, if you guarantee to generate a different filename name for each one. This can be achieved by using the capturing groups of the regex in the filename. Ex: if your metadata pattern is attachment-(.*) and your filename is \1, processing with two metadata attachment-file1.csv and attachment-file2.csv will result in files, file1.csv and file2.csv.

Note: In Babelway, we're using the standard Java version of REGEX, and it's the same used all over the system.

If any of the other files that need to be added to the ZIP file not exist , you will have the option to select it to fail or not by checking the checkbox "Error if empty".

If checked then if any file not exist , then it will fail .

If not checked then if any file not exist , it will continue processing .

PGP wrapping

Allows you to encrypt a file using PGP.

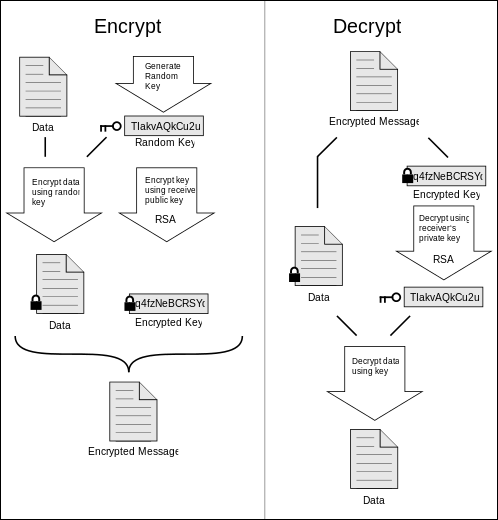

PGP supports message authentication and integrity checking. The latter is used to detect whether a message has been altered since it was completed (the message integrity property) and the former to determine whether it was actually sent by the person or entity claimed to be the sender (a digital signature). Because the content is encrypted, any changes in the message will result in failure of the decryption with the appropriate key. The sender uses PGP to create a digital signature for the message with either the RSA or DSA algorithms. To do so, PGP computes a hash (also called a message digest) from the plaintext and then creates the digital signature from that hash using the sender's private key.

The parameters are:

PGP public Key

Public key to be used to encrypt the message. Babelway supports RSA and El Gamal encryption keys.

Output in ascii

If checked, the PGP output follows the Ascii armored format. If not, the output is in binary.

ASCII armored format is a binary-to-textual encoding converter. ASCII armored format is a feature of a type of encryption called pretty good privacy (PGP). ASCII armor involves encasing encrypted messaging in ASCII so that they can be sent in a standard messaging format such as email.

MIME wrapping

Allows you to wrap your output message in a MIME envelop.

The parameters are:

File name	The name that your output file will have in the MIME envelop.
Content type	The content type that will be associated to your output file in the MIME envelop.
Other Files	Other files that must be added to the MIME envelope. Metadata = Pattern to match the metadata containing the file to attach. Filename = name of the attachment in the MIME envelope. If one pattern matches multiple files, it is possible to put them all, if you guarantee to generate a different filename name for each one. This can be achieved by using the capturing groups of the regex in the filename. Ex: if your metadata pattern is attachment-(.*) and your filename is \1, processing with two metadata attachment-file1.csv and attachment-file2.csv will result in files, file1.csv and file2.csv.
Sign Message	Sign the generated MIME envelope.
Signature key alias	The alias of the key (in the keystore of your environment) that will be used to generate the signature.
Encrypt Message	Encrypt the generated MIME envelope whether it is signed or not.
Partner key alias	The alias (in the keystore of your environment) of your partner's certificate. It will be used to crypt the S/MIME message.

Replacement based on regular-expressions.

Allows you to make a global search and apply regular-expression replacements on your output file.

You can define more than one pair of regular-expressions, find & replace pattern.

The parameters are:

Replacements

List of regular expressions and replacement patterns that will be applied on your document for every match.

Create messages from metadata

Allows you to create new messages, with content from current metadata.

The parameters are:

Target gateways	The gateways to which the new message will be sent.
Metadata and names	Metadata containing content for messages to create. Metadata = Pattern to match the metadata that contains the contents for new messages. Filename = fileName of the new messages. If one pattern matches multiple metadata, a new message will be generated for each metadata. You can use the capturing groups of the regex in the filename. E.g.: if your metadata pattern is attachment-(.*) and your filename is \1, processing with two metadata attachment-file1.csv and attachment-file2.csv will result 2 new messages files file1.csv and file2.csv.
User Metadata Transfer Strategy	The strategy that will be used to transfer the user metadata to the new message created in the connected gateways.

Note:

This extra processing is not executed while running a test case.
In Babelway, we're using the standard Java version of REGEX, and it's the same used all over the system.

Message Validation (Deprecated)

Allow you to validate a message against a metadata.

The parameters are:

Fail on error	Create an error if the message is not valid.
Set status on error	If 'Fail on error' is not selected, this puts the message in error without creating a ticket.
Metadata name	Name of the metadata containing the expected result.
Regex to ignore	List of regular expressions to ignore.
Date to ignore	List of date format expressions to ignore. Dates are expressed using the regular java format like : yyyyMMddhhmmss.

Note: In Babelway, we're using the standard Java version of REGEX, and it's the same used all over the system.

Automatically close errors

This extra-processing allows to define criteria to automatically close an error that occurs during the message definition OUT step.

The parameters are :

Error message patterns

The patterns that will be tested against the error message.

If the error message matches at least one of the patterns, the status of the message will automatically be set to Error(closed).

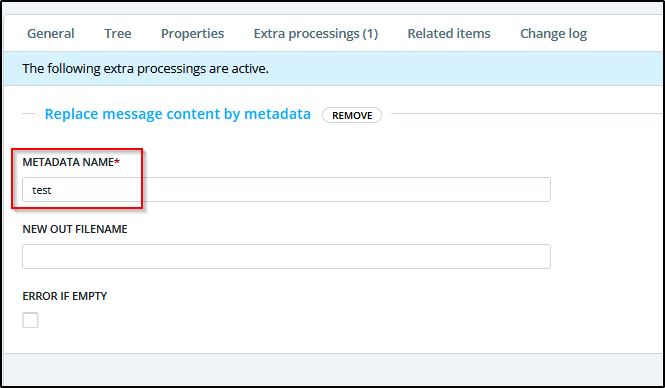

Replace message content by metadata

This extra-processing used to replace the message OUT contents by the value of a metadata, The first field (MetaData name) will contain the name of the metadata containing the new data for the message. (without {})

If filled, you can assign a new filename to the message but it’s not mandatory.

The checkbox will determine what to do if the metadata is not present:

if checked, the message will be put in error
if not checked, the message will be empty and no error will be generated

Replace message content by metadata

Duplicate outgoing message

Allows to duplicate the outgoing message, and inject it into another channel.

The parameters are :

Step	When the Outgoing message must be duplicated
Target gateways	The gateways to which the duplicated message will be sent.
User Metadata Transfer Strategy	The strategy that will be used to transfer the user metadata to the new message created in the connected gateways.

Report success

This extra processing allows upon successful message termination, generates a report of the state of the message and sends it into another channel.

The parameters are :

Target Gateways

Gateways in which the message report should be sent.

Note: This extra processing is not executed while running a test case.

Report success by mail

This extra processing allows upon successful message termination, generates a report of the state of the message and sends it by mail.

The parameters are :

Add original message as attachment	Check in order to attach the original message to the email.
Receivers	List emails of your recipients.
Sender	Email that will be used as sender of the email. Note that if you use another domain than babelway's that there is network configuration involved to make sure that the emails aren't flagged as spam when sent by our servers for your domain.
Subject	Subject of the email.
Body	Body of the email.

Note: This extra processing is not executed while running a test case.

Report error

This extra processing allows upon message failure, generates a report of the state of the message and sends it into another channel.

The parameters are :

Target Gateways

Gateways in which the message report should be sent.

Note: This extra processing is not executed while running a test case.

: A notification will be send regardless at which level the message fail on error

Report error by mail

This extra processing allows upon message failure, generates a report of the state of the message and sends it by mail.

The parameters are :

Add original message as attachment	Check in order to attach the original message to the email.
Receivers	List emails of your recipients.
Sender	Email that will be used as sender of the email. Note that if you use another domain than babelway's that there is network configuration involved to make sure that the emails aren't flagged as spam when sent by our servers for your domain.
Subject	Subject of the email.
Body	Body of the email.

Note: This extra processing is not executed while running a test case.

: A notification will be send regardless at which level the message fails on error
