4.3.5.1. MessageDefinition IN – Babelway

Allows you to save your input file as a metadata, for future use as explained in the next steps.

The parameters are :

Metadata

The metadata in which you want to be saved in the input file.

Duplicate incoming message

Allows to duplicate the incoming message, and inject it into another channel.

The parameters are :

Step	When the incoming message must be duplicated in the process of the original message. If Duplicating the message later, the message will not be duplicated if the message fails some validation.
Target gateways	The gateways to which the duplicated message will be sent.
User Metadata Transfer Strategy	The strategy that will be used to transfer the user metadata to the new message created in the connected gateways.

Note: This extra processing is not executed while running a test case.

Zip unwrapping

Allows you to extract your input file from a zip. It also allows you to save other files of the zip to be reused, in the next steps.

As an example, suppose that your channel is designed to process xml orders. However, instead of directly receiving the xml order from your partner, you receive a zip file that containing the expected file order.xml, and also a file order.pdf. You can just extract your order.xml file by using this extra processing with the pattern 'order.xml'. If you need it for later use, you can also save the pdf file for future use (reuse in your transformation, reinclude it in archive in message out, ...)

The parameters are :

File name pattern

Pattern (regular expression) for the file name in the zip of the file that will become your input message. First match is used.

Other files to save

Allows you to save other files of the zip for future use. For every file that you want to save, you have to specify the pattern of the file name in the zip and the name of the metadata in which you want to save the content. If one pattern matches multiple files, it is possible to save them all if you guarantee to generate a different metadata name for each. This can be achieved by using the capturing groups of the regex in the metadata names. Ex: if your pattern is (.*\.csv) and your metadata name is attachment-$1, processing with files file1.csv and file2.csv will result in two metadata as follows attachment-file1.csv and attachment-file2.csv .

Note: In Babelway, we're using the standard Java version of REGEX, and it's the same used all over the system.

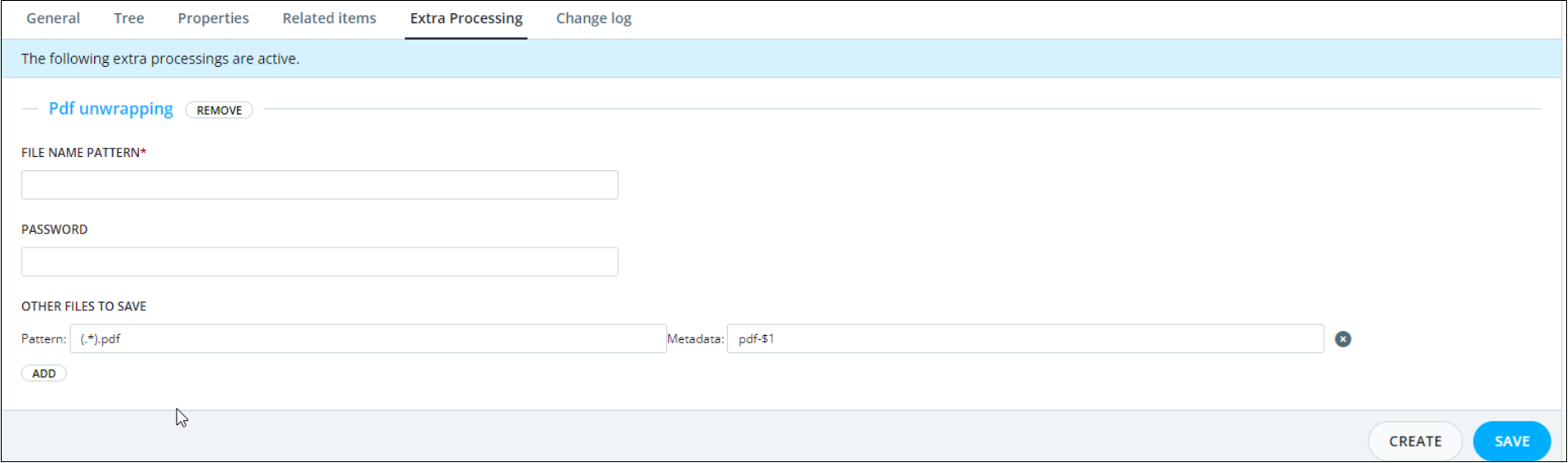

Pdf unwrapping

Allows you to extract your input file from a pdf. It also allows you to save other files of the pdf to be reused in the next steps.

As an example, suppose that your channel is designed to process xml orders. But instead of directly receiving the xml order from your partner, you receive a pdf file, with your xml order included as a pdf attachment. You can extract your order.xml file by using this extra processing with the pattern 'order.xml'.

The parameters are :

File name pattern	Pattern (regular expression) for the file name in the pdf of the file that will become your input message. First match is used.
Password	Password, if any, to open the pdf file.
Other files to save	Allows you to save other files of the pdf for future use. For every file that you want to save, you have to specify the pattern of the name of the pdf attachment (first match) and the name of the metadata in which you want to save the content.

You can save as many pdfs as you need as metadata not only one by using the regex below in other files to save part

MIME unwrapping

Allows you to extract your input file from a MIME envelop. It also allows you to save other files of the MIME envelop to be reused, in the next steps.

The parameters are :

File name pattern	Pattern (regular expression) for the file name in the MIME of the file that will become your input message. First match is used.
Other files to save	Allows you to save other attachments of the MIME envelop for future use. For every file that you want to save, you have to specify the pattern of the name of the attachment (first match), and the name of the metadata in which you want to save the content.
Signature key alias	The alias of the key (in the keystore of your environment) that will be used to check the signature.
Verify signature	Enables or disables the check of the signature.

PGP unwrapping

Allows to decrypt a file encrypted using PGP.

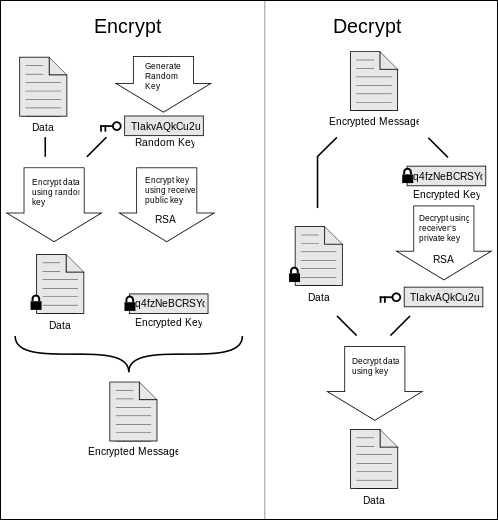

PGP supports message authentication and integrity checking. The latter is used to detect whether a message has been altered since it was completed (the message integrity property) and the former to determine whether it was actually sent by the person or entity claimed to be the sender (a digital signature). Because the content is encrypted, any changes in the message will result in failure of the decryption with the appropriate key. The sender uses PGP to create a digital signature for the message with either the RSA or DSA algorithms. To do so, PGP computes a hash (also called a message digest) from the plaintext and then creates the digital signature from that hash using the sender's private key.

The parameters are :

PGP Private Key	Private key to be used to decrypt the message. Babelway supports RSA and El Gamal encryption keys.
Password	Password to access the private key.

Validation of Xml Signature

Allows you to validate the Xml Signature.

The parameters are :

Signature verification certificate

Select certificate for data or go to certificates store.

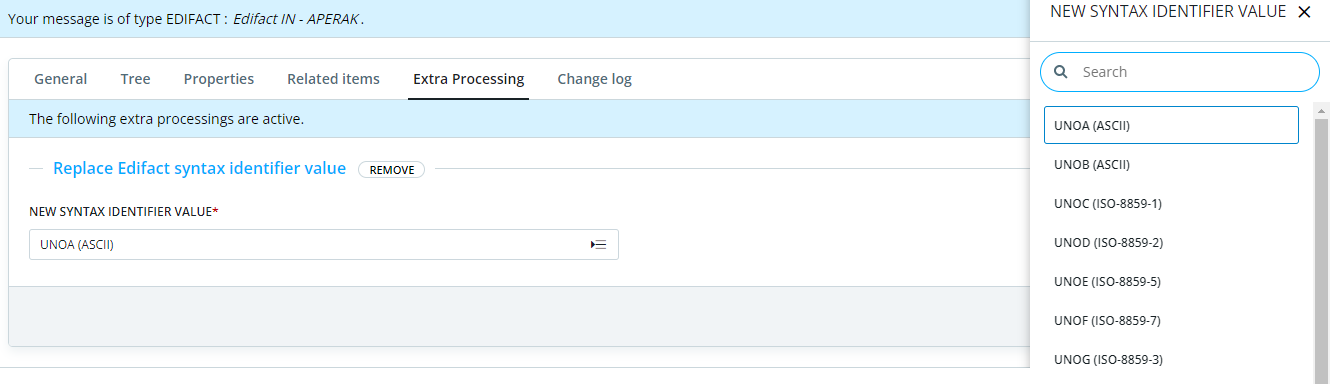

Replace EDIFACT Syntax Identifier Value

This is extra processing is used over the message in if and only if the received message is with type EDIFACT.

It is mainly used in case that the actual encoding type of the EDIFACT message doesn't match the encoding indicator in the UNB segment field UNB1.1, as the value of the field UNB1.1 in the UNB segment (UNOA,UNOC,UNOW...etc) indicate the encoding type of the file.

Configuring this extra-processing is simple by just choosing the desired value of field UNB1.1 in the UNB segment from the aside to ensure it properly matches the actual encoding of the EDIFACT file.

Replacement based on regular-expressions

Allows you to make a global search and apply regular-expression replacements on your input file, before it is analyzed.

You can define more than one pair of regular-expressions to find & replace pattern.

The parameters are :

Replacements

List of regular expressions and replacement patterns that will be applied on your document for every match.

Remove ASCII Control characters (except line feed)

Allows you to remove ASCII Control characters from input file.

Characters removed are : [x00-x09]|[x0B-x0C]|[x0E-x0F]|[x10-x1F]|x7F

Message identifier

This extra processing analyses the incoming message, and associates the following metadata to it:

universal_router_type	The type of document, like 'ORDERS', 'INVOIC', 'DESADV', ...
universal_router_format	The format of the message, like 'EDIFACT', 'X12', 'IDOC', ...
universal_router_version	The version of the message format. For example, for EDIFACT, the version can be '96A', '01A', ...
universal_router_sender	The identification of the sender of the message.
universal_router_receiver	The identification of the receiver of the message.
universal_router_key	The intergration of the five previous fields, separated by '_'. The goal of this field is to simplify the writing of routing rules, or of keys of messages, that want to use all of the above fields.

The metadata will typically be used by a following routing. As an example, suppose that you receive orders in different formats with the same gateway. This extra processing can be used to identify the following formats: EDIFACT, X12, IDOC (xml or flat file), RND, VDA, cXML, UBL. This information can then be used to route the message to the correct message definition.

Parameters :

Custom identifier

This extra processing can take a custom identifiers XML file definition to import custom extractor.

The XML is defined as followed :

<?xml version="1.0" encoding="UTF-8"?>
<Identifiers>
	<Identifier>
		<IdentifyByRegex length="10000" encoding="UTF8"><![CDATA[<\?xml.*<cbc:UBLVersionID>(.*)<\/cbc:UBLVersionID>.*]]></IdentifyByRegex>
		<Format>UBL_CUSTOM_$1</Format>
		<Version>$1</Version>
		<Sender>
			<Xpath><![CDATA[/Invoice/AccountingSupplierParty/Party/PartyIdentification/ID/text()]]></Xpath>
		</Sender>
		<Receiver>
			<Xpath><![CDATA[/Invoice/AccountingCustomerParty/Party/PartyIdentification/ID/text()]]></Xpath>
		</Receiver>
		<Type>
			<Regex>
				<Expression><![CDATA[<\?xml (version)="1\.0" encoding="UTF-8"\?>\n<\?xml-stylesheet type="text\/xsl" href=".*" \?>\n<([A-Za-z]*) xmlns:.*>.*<cec]]></Expression>
				<Value>$1-$2</Value>
			</Regex>
		</Type>
	</Identifier>
	<Identifier>
		<IdentifyByRegex length="900" encoding="UTF8"><![CDATA[CUSTOM(ISA)\|([0-9]+).*GS\|IN\|([0-9]+)\|([0-9]+)]]></IdentifyByRegex>
		<Format>$1_$2</Format>
		<Version>$2</Version>
		<Sender>$3</Sender>
		<Receiver>$4</Receiver>
		<Type>ISA_HARCODED</Type>
	</Identifier>
</Identifiers>

Note: In Babelway, we're using the standard Java version of REGEX, and it's the same used all over the system.

This is another example on how to identify CSV file.

This is a sample of the CSV file

SenderID,ReceiverID,MessageKey,DocumentType , DocumentNumber , Date , Time, ItemNumber, ItemDescription, ItemQuantity, ItemPrice
8431598762018,2139854706451,1ae187a1-afe7-108e-9343-37971a38b936,InvoiceDocument,17052017,0205,01,Item Description 1,3,15.75
8431598762018,2139854706451,108e9343-e187-e933-71a3-187a1afe7108,InvoiceDocument,17052017,0205,02,Item Description 2,1,75
8431598762018,2139854706451,71a3187a-43e1-7a1a-ae18-97a57c17423a,InvoiceDocument,17052017,0205,03,Item Description 3,5,5.5
8431598762018,2139854706451,aae1848c-7618-a0c1-f941-37971a38b936,InvoiceDocument,17052017,0205,04,Item Description 4,7,17
8431598762018,2139854706451,0ca57c1f-c7ff-4952-c5af-12a0c1f941a3,InvoiceDocument,17052017,0205,05,Item Description 5,2,7

Below are the positions of the (Sender, Receiver, Type) that we will extract from the CSV and will use to create the Custom Identifier file.

The UniversalRouterSender will be extracted from the second row, first column.

The UniversalRouterReceiver will be extracted from the second row, second column.

The Type will search for "InvoiceDocument" in the CSV file.

The XML is defined as followed :

<?xml version="1.0" encoding="UTF-8"?>
<Identifiers>
	<Identifier>
		<IdentifyByRegex length="10000" encoding="UTF8"><![CDATA[(\?i)\s\?SenderID\s\?,\s\?ReceiverID\s\?,\s\?MessageKey\s?,\s\?DocumentType\s\?]]></IdentifyByRegex>
		<Format>UBL_CUSTOM_$1</Format>
		<Version>$1</Version>
		<Sender>
			<Expression><![CDATA[(\?i).*\?\n(.*\?),]]></Expression>
			<Value>$1</Value>
		</Sender>
		<Receiver>
			<Expression><![CDATA[(\?i).*\?\n(.*\?),(.*\?),]]></Expression>
			<Value>$2</Value>
		</Receiver>
		<Type>
			<Regex>
				<Expression><![CDATA[(\?i)(\s\?(InvoiceDocument)\s\?,)]]></Expression>
				<Value>INVOICE</Value>
			</Regex>
		</Type>
	</Identifier>
</Identifiers>

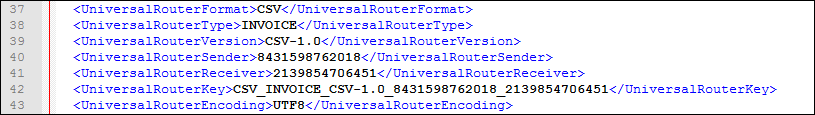

Below is a print screen from the "contextOut.xml" file from the CSV processed message showing the extracted information saved in the universal router metadatas.

Universal Router Metadatas

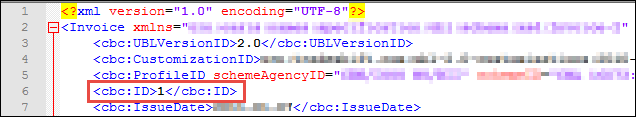

Note: To be able to get the value from an XML file containing a namespace, you will need to use the *: for the prefix in the XML path when using the xpath for the Custom Identifier file.

For example, below is the path to use if you want to get the value in the field "cbc:ID" from the below input message and save it under "Type" for the custom identifier file.

Input Message With Namespace

The path is /*:Invoice/*:ID

The Path

Note: This extra processing is not executed while running a test case.

Save human readable PDF

Allows to save a human readable PDF version as a metadata, for future use in the next steps. This is only available for Edifact and X12 messages.

The parameters are :

Metadata

The metadata in which you want to be saved in the input file.

Trustweaver processing

Calls upon Trustweaver to process your message. See http://www.trustweaver.com for more informations.

This extra processing is not executed while running a test case.

The parameters are :

Trustweaver environment	The Trustweaver environment that is targeted by the process.
Client authentication key alias	The alias of the key (in the keystore of your environment) that will be used to authenticate to Trustweaver.
Country code	The TrustWeaver code of the country for which the Trustweaver process will be done.
Document format	The TrustWeaver format of the document for which the Trustweaver process will be done.
Signature format	The TrustWeaver format of the signature for which the Trustweaver process will be done.
Tax Id XPath	The XPath that targets the tax id in the xml payload and that will be used for the Trustweaver process.
Validation Outcome code pattern	A pattern designating the validation outcomes that are accepted.
Error if process fails	If the TrustWeaver process fails, the message will be put in error.

Xslt transformer

Applies an xslt to correct your message. It is applied on the internal xml representation of the message (after the message has been analysed and converted).

Be aware that the message resulting from your transformation must conform with the message definition (tree structure).

The parameters are :

Xslt

The transformation that must be applied.

Document extractor

Allows you to extract any information in the input message to be able to view it directly in the monitor page.

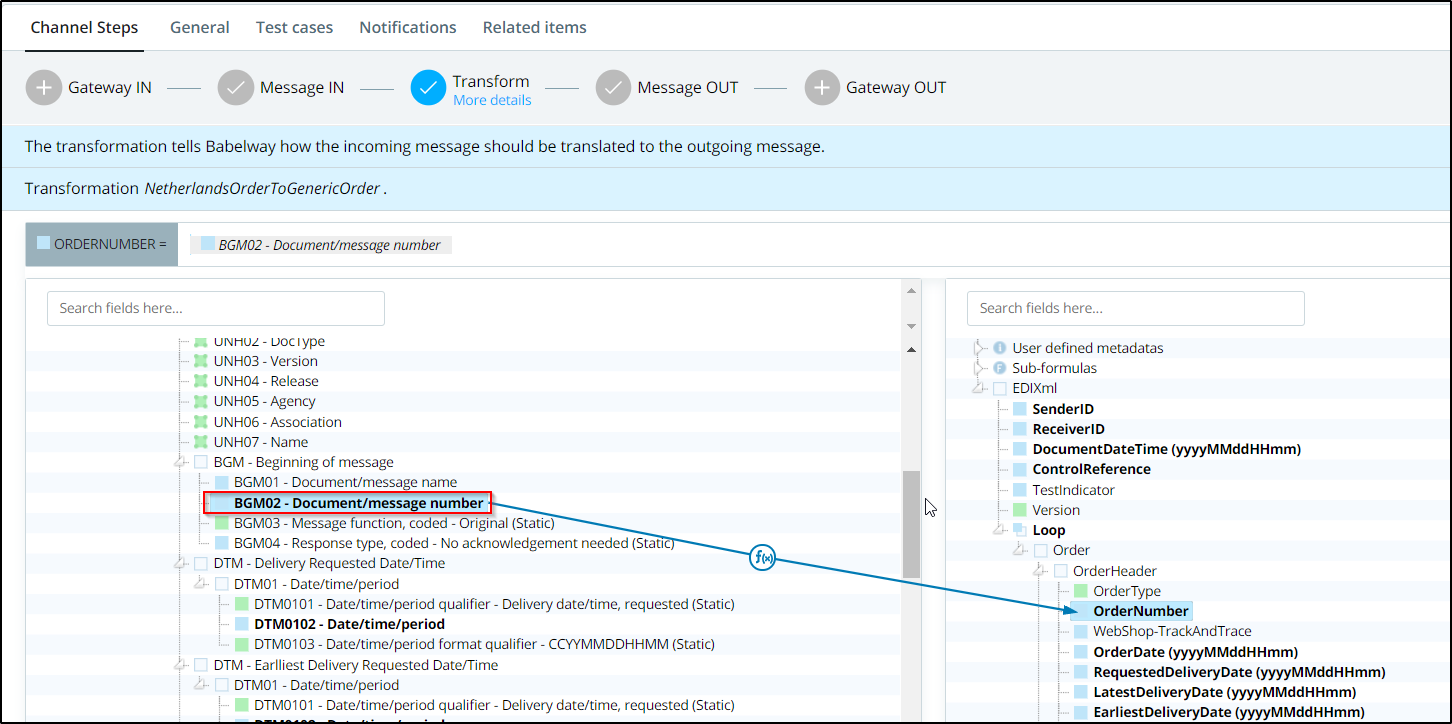

As an example, suppose that you want to extract some information from the input message to be able to view it directly in the monitor page.

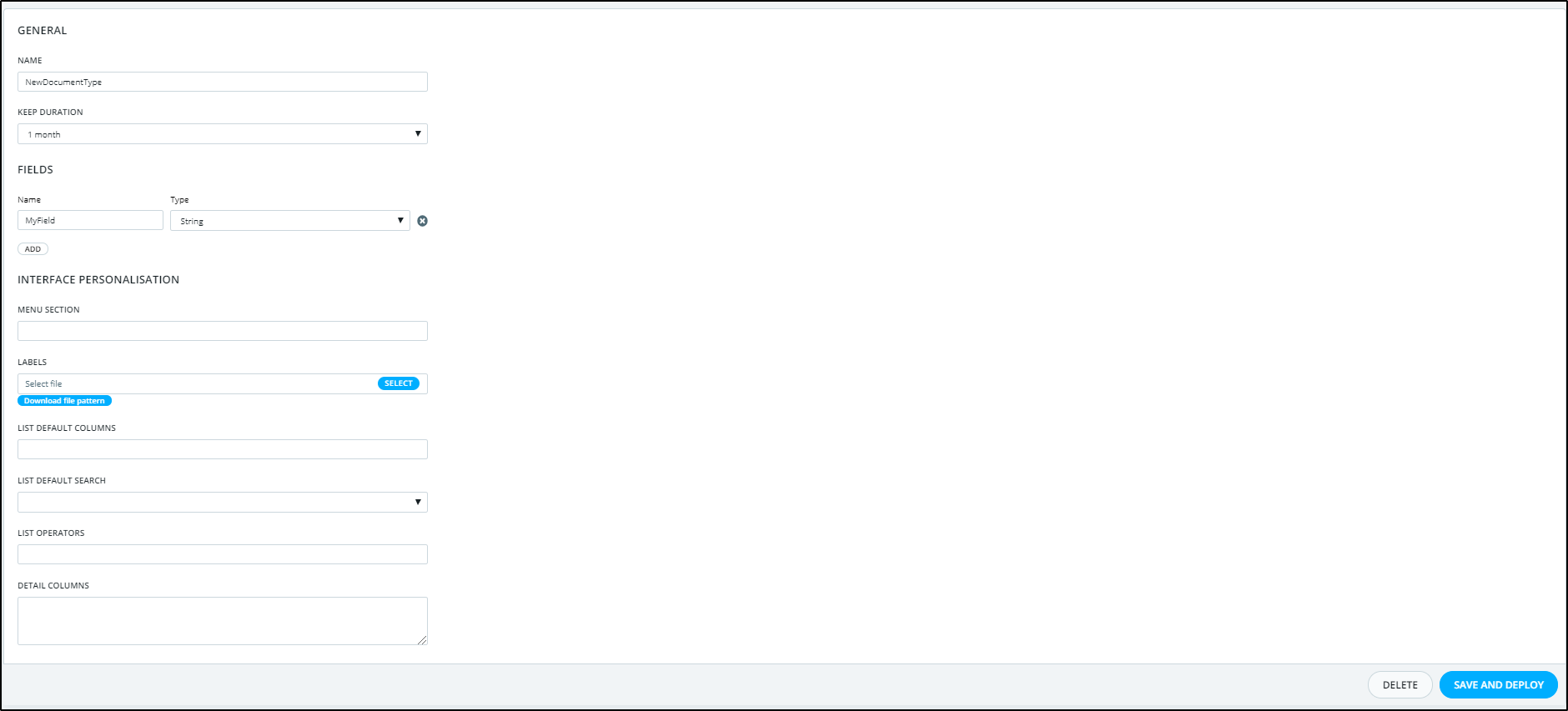

First, create the "Document type" you want to use from "Admin / Envirnment settings / Document types"

Based on the information you want to store, you will need to create its corresponding document type, as shown below.

Document types

Note: For more information about the Document types you can check this link Document types.

Then, create this extra processing in the "Message In" and after that click on "Edit" to map the fields you want to extract, as shown below.

Extra processings

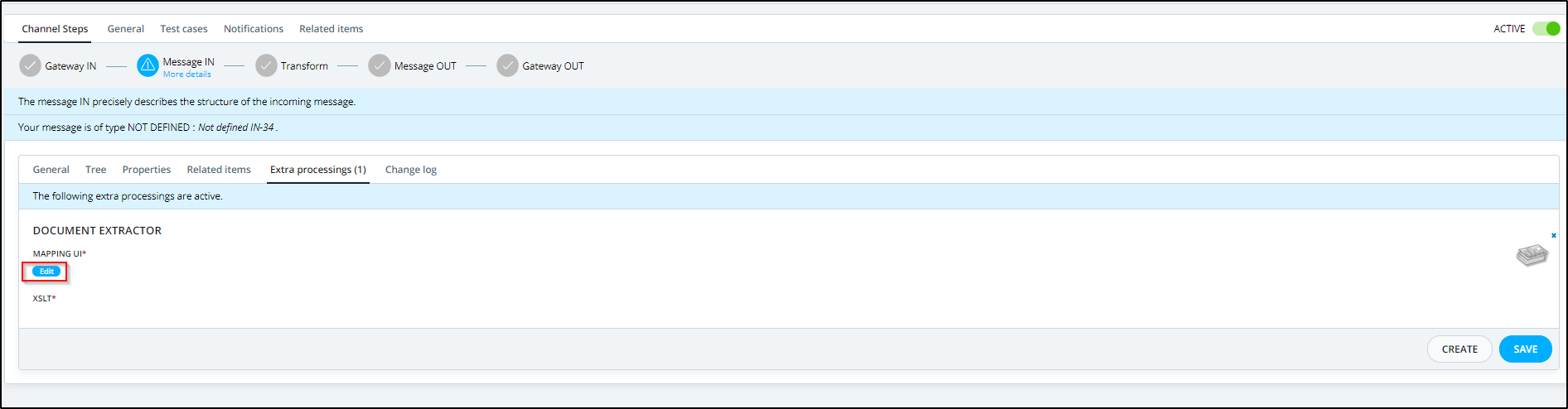

After that, begin mapping the fields from the input message you want to extract to the fields in this document type, as shown below.

Mapping

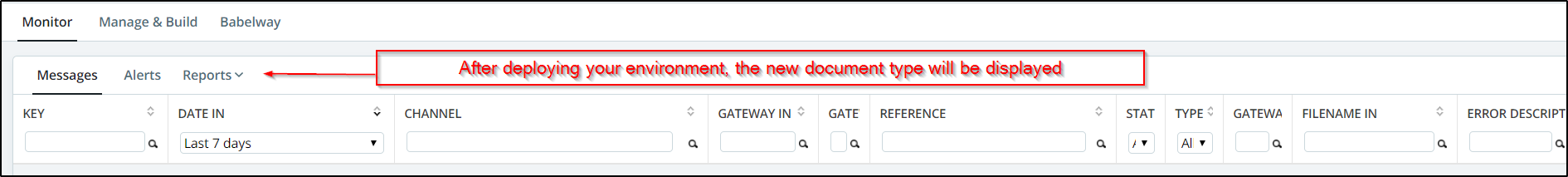

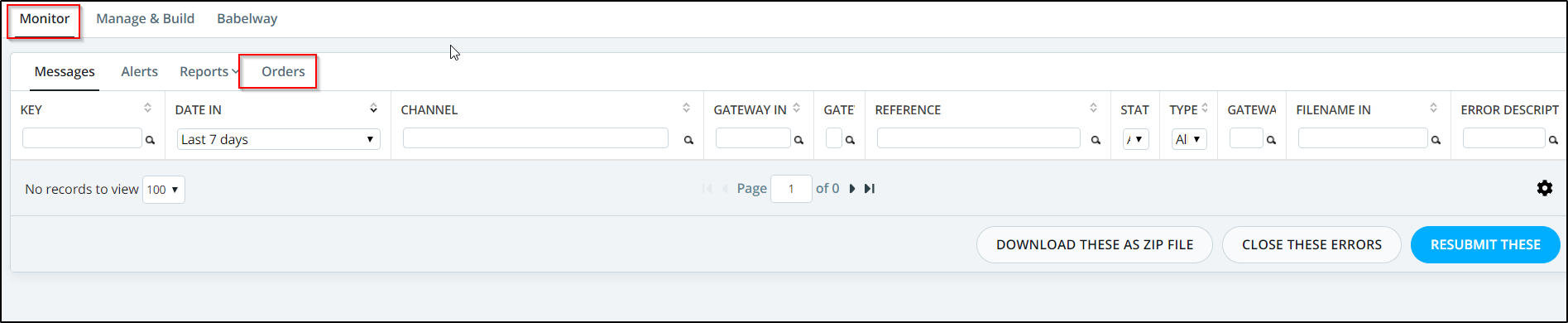

To be able to view the extracted information, go to monitoring and then based on the "name of the document you used" ("orders" in this case), click on it to view the extracted information, as shown below.

Monitoring

Note: In order for the new document type to be displayed in the Monitoring page after using it in it's corresponding channel or channels you will need to deploy your environment in order to push this changes to production and the new document will be displayed in the Monitoring page, as shown below.

Deploy your environment

Automatically close errors

This extra-processing allows to define criteria to automatically close an error that occurs during the message definition IN step.

The parameters are :

Error message patterns

The patterns that will be tested against the error message.

If the error message matches at least one of the patterns, the status of the message will automatically be set to Error(closed).

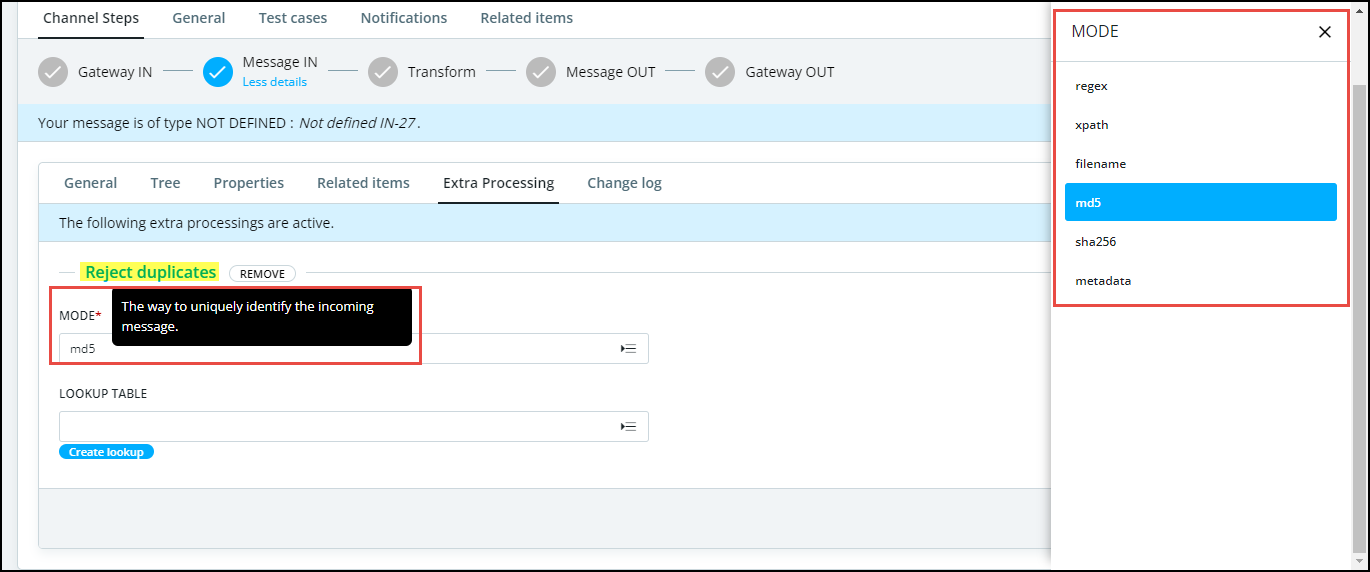

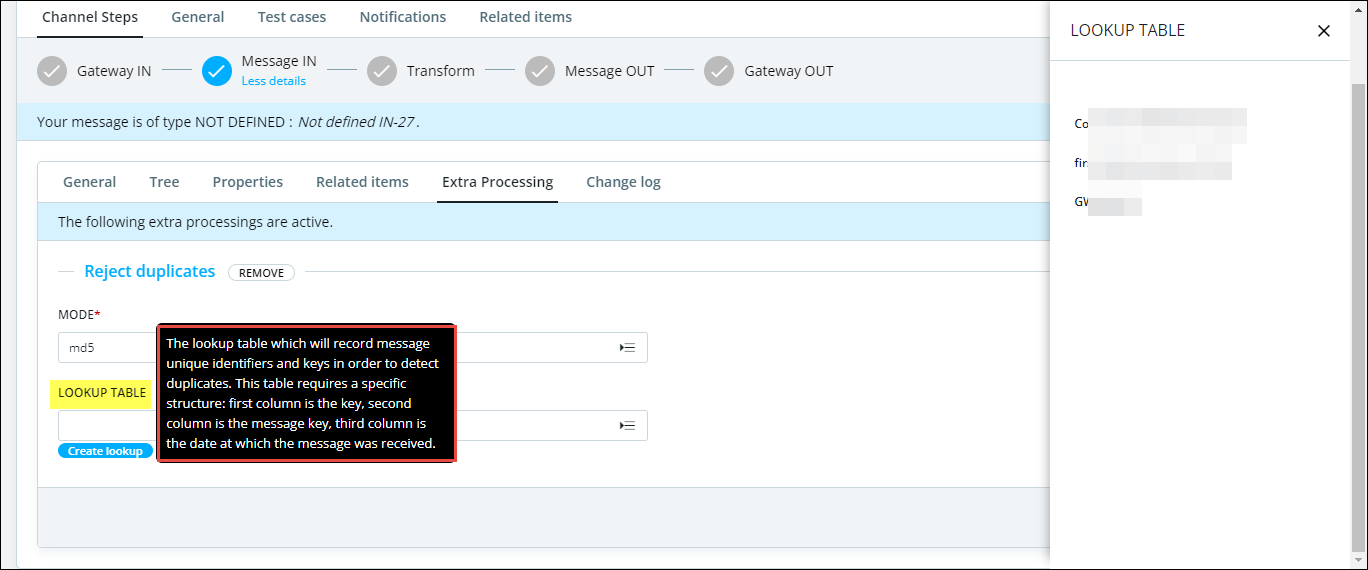

Reject Duplicate Messages

This extra processing allows you to identify and reject incoming duplicate messages.

When a message comes in, it is identified by a key (it can be the file name, a hash of the message, an xpath or regex extract of the message, or a metadata value). This key is then checked against previously recorded keys in a dedicated lookup table. If the message matches an existing entry, it is set in error.

Mode	Indicates the way to identify the message's unicity: MD5 hash, 256 hash, xpath or regex extraction, file name, or metadata value.
Create new lookup table	Check this box to indicate that you'd like the system to create a new lookup table rather than use the one in the field (lookup table)
Lookup table	Lookup table which will be collecting your message identifiers, the babelway message key, and the date at which the message came in. The table requires the exact following structure: You may complete the lookup table with any additional information but any change to these first three columns will break the functionality.
Pattern	(optional) In the regex mode, the pattern is the regular expression to extract the unique identifier. Note that if the resulting text exceeds 200 chars then its sha256 hash is saved instead.
Xpath	(optional) In the xpath mode, this is the expression to extract the unique identifier. Note that if the resulting text exceeds 200 chars then its sha256 hash is saved instead.
Metadata name	(optional) In the metadata mode, this is the name of the metadata you wish to use to uniquely identify your message. Note that if the resulting text exceeds 200 chars then its sha256 hash is saved instead.

Regular expression metadata extractor

Allows you to search the input message by using one or more regex in the Find field(s) then the user defined metadata will be created using the name provided in the MetadataName and its value will be generated from the Value field when the provided pattern in the Find field matches the requested value in the input message.

You can define more than one pair of regular-expressions to find & generate metadata.

The parameters are :

Extractions

The list of parameters (Find:Pattern, Value:String, MetadataName:String) which the extra-processing takes. For every of these elements, the extra-processing will evaluate the pattern and, if it matches, evaluates the value, and sets it as a user metadata with the requested name. First match is used.

Note: By being able to set metadata directly after the gateway IN, you can use this metadata for the routing on the Message definition IN and avoid any extra channel setting metadata only.

Report success

This extra processing allows upon successful message termination, generates a report of the state of the message and sends it into another channel.

The parameters are :

Target Gateways

Gateways in which the message report should be sent.

Note: This extra processing is not executed while running a test case.

Report success by mail (deprecated)

This extra processing allows upon successful message termination, generates a report of the state of the message and sends it by mail.

The parameters are :

Add original message as attachment	Check in order to attach the original message to the email.
Receivers	List emails of your recipients.
Sender	Email that will be used as sender of the email. Note that if you use another domain than babelway's that there is network configuration involved to make sure that the emails aren't flagged as spam when sent by our servers for your domain.
Subject	Subject of the email.
Body	Body of the email.

Note: This extra processing is not executed while running a test case.

Report error

This extra processing allows upon message failure, generates a report of the state of the message and sends it into another channel.

The parameters are :

Target Gateways

Gateways in which the message report should be sent.

Note: This extra processing is not executed while running a test case.

: A notification will be send regardless at which level the message fail on error

Report error by mail (deprecated)

This extra processing allows upon message failure, generates a report of the state of the message and sends it by mail.

The parameters are :

Add original message as attachment	Check in order to attach the original message to the email.
Receivers	List emails of your recipients.
Sender	Email that will be used as sender of the email. Note that if you use another domain than babelway's that there is network configuration involved to make sure that the emails aren't flagged as spam when sent by our servers for your domain.
Subject	Subject of the email.
Body	Body of the email.

Note: This extra processing is not executed while running a test case.

: A notification will be send regardless at which level the message fail on error

Save input file

Duplicate incoming message

Zip unwrapping

Pdf unwrapping

MIME unwrapping

PGP unwrapping

Validation of Xml Signature

Replace EDIFACT Syntax Identifier Value

Replacement based on regular-expressions

Remove ASCII Control characters (except line feed)

Message identifier

This is another example on how to identify CSV file.

Save human readable PDF

Trustweaver processing

Xslt transformer

Document extractor

Automatically close errors

Reject Duplicate Messages

Regular expression metadata extractor

Report success

Report success by mail (deprecated)

Report error

Report error by mail (deprecated)
