4.4.4. Drag and Drop Transformation

Drag and Drop transformation visual editor enables to easily define the transformation between your source message and your target message.

This transformation visual editor is divided into the following zones:

• Top bar allows you to edit all of your formulas, when a mapping rule is selected. In other circumstances, it just guides you with contextual help.

• Left panel displays the structure of the message in.

• Right panei displays the structure of the message out.

• At the bottom of the component, you have links for global actions (save the mapping, or run a test case).

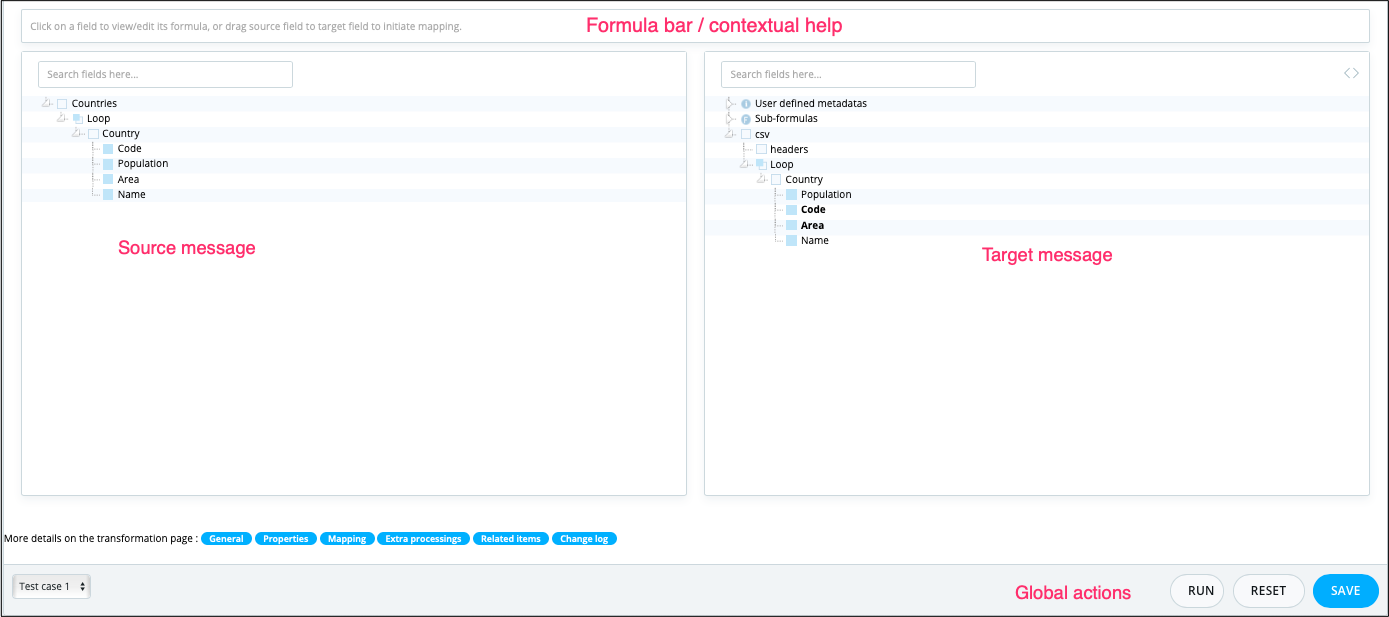

Drag and drop transformation visual editor

The editor has been optimized to use all the available space of your window. To take full profit of it, we recommend that you maximize the size of your window, especially when you work with big message definitions.
