4.2.3.27. PEPPOL Gateway Out

This gateway allows you to send files to the PEPPOL network.

More information about PEPPOL in Gateway IN section

 PEPPOL environment

 Choose between the regular PEPPOL production infrastructure, connected to the SML, or the test infrastructure, connected to the SMK. The default is Production

 Access Point Key

 The peppol key you received as an access point. If none is provided, Babelway's key will be used.

 Attachment Name

 Name of the file sent by AS2. This is an extension to the base AS2 specification and might not be supported by all partners. By default no file name is sent.

Corner 1 Country

Allows you to specify the corner 1 country in your Peppol SBDH. If left blank (or its calculated value is empty), the SBDH will attempt to infer the country based on the sender's Peppol participant identifier's country code.

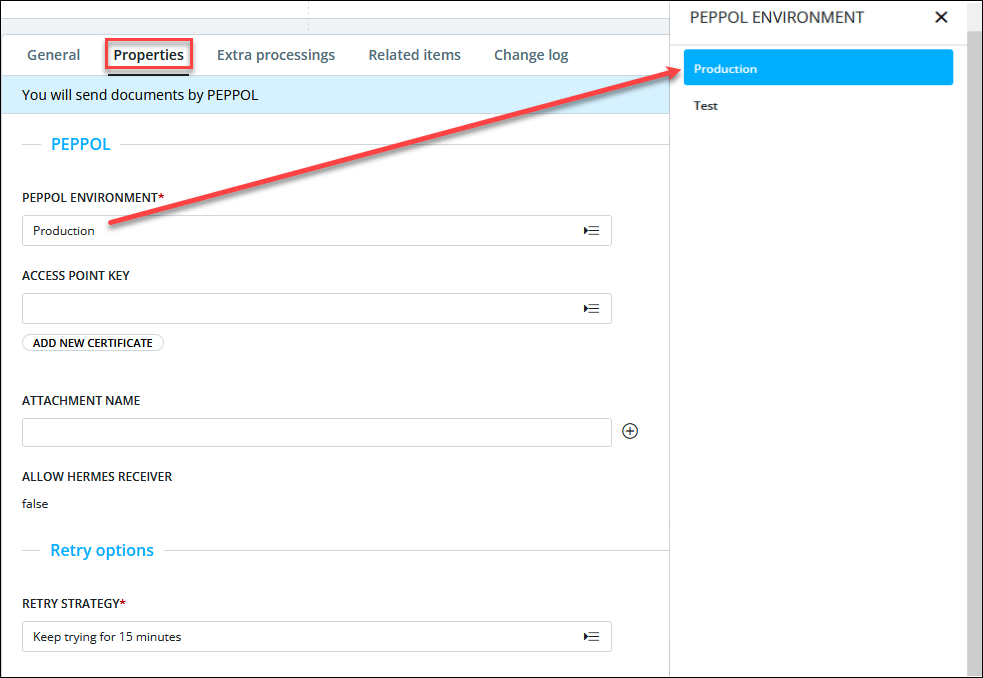

Note: In order to change the PEPPOL environment to Production or Test regarding the "Gateway Out" then from "Gateway Out" properties select Production or Test from "PEPPOL environment" field, as shown below.


Select PEPPOL environment Production or Test




For more information related to 'ALLOW HERMES RECEIVER' contact L2 support (For admins only)

Note:

  • If there is a file name provided in the "Message In" or "Message Out" which contain ~ tilde character, All browser based on Chromium will replace the ~ tilde character by the _ underscore character when you try to download the file from the Babelway interface, For more details you can check this link https://bugs.chromium.org/p/chromium/issues/detail?id=479419
  • The maximum file size accepted by this gateway is 100 MB.
