4.3.4.15. UBL

OASIS Universal Business Language (UBL) is the product of an international effort to define a royalty-free library of standard electronic XML business documents such as purchase orders and invoices.

File sample

Below is a sample of UBL file:

<?xml version="1.0" encoding="UTF-8"?>
<Catalogue xmlns:cac="urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:cbc="urn:oasis:names:specification:ubl:schema:xsd:CommonBasicComponents-2" xmlns="urn:oasis:names:specification:ubl:schema:xsd:Catalogue-2" xsi:schemaLocation="urn:oasis:names:specification:ubl:schema:xsd:Catalogue-2 ../UBL%202.1%20schema/maindoc/UBL-Catalogue-2.1.xsd">
	<cbc:UBLVersionID>2.1</cbc:UBLVersionID>
	<cbc:CustomizationID>urn:www.cenbii.eu:transaction:biicoretrdm019:ver2.0:extended:urn:www.peppol.eu:bis:peppol1a:ver2.0</cbc:CustomizationID>
	<cbc:ProfileID>urn:www.cenbii.eu:profile:bii01:ver2.0</cbc:ProfileID>
	<cbc:ID>1234</cbc:ID>
	<cbc:ActionCode listID="ACTIONCODE:PEPPOL">Add</cbc:ActionCode>
	<cbc:Name>Peppol Catalogue</cbc:Name>
	<cbc:IssueDate>2013-08-01</cbc:IssueDate>
	<cbc:VersionID>1</cbc:VersionID>
	<cac:ValidityPeriod>
		<cbc:StartDate>2013-09-01</cbc:StartDate>
		<cbc:EndDate>2014-12-31</cbc:EndDate>
	</cac:ValidityPeriod>
	<cac:ReferencedContract>
		<cbc:ID>3299-8RA</cbc:ID>
		<cbc:ContractType>Framework</cbc:ContractType>
	</cac:ReferencedContract>
	<cac:ProviderParty>
		<cac:PartyIdentification>
			<cbc:ID schemeID="GLN">579000123002</cbc:ID>
		</cac:PartyIdentification>
		<cac:PartyName>
			<cbc:Name>Office AS</cbc:Name>
		</cac:PartyName>
	</cac:ProviderParty>
	<cac:ReceiverParty>
		<cbc:EndpointID schemeID="NO:ORGNR">99156827</cbc:EndpointID>
		<cac:PartyIdentification>
			<cbc:ID schemeID="NO:ORGNR">99572527</cbc:ID>
		</cac:PartyIdentification>
		<cac:PartyName>
			<cbc:Name>DIFI</cbc:Name>
		</cac:PartyName>
	</cac:ReceiverParty>
	<cac:CatalogueLine>
		<cbc:ID>1</cbc:ID>
		<cbc:ActionCode listID="ACTIONCODE:BII2">Add</cbc:ActionCode>
		<cbc:OrderableIndicator>true</cbc:OrderableIndicator>
		<cbc:OrderableUnit>BX</cbc:OrderableUnit>
		<cbc:OrderQuantityIncrementNumeric>1</cbc:OrderQuantityIncrementNumeric>
		<cbc:MinimumOrderQuantity>1</cbc:MinimumOrderQuantity>
		<cac:RequiredItemLocationQuantity>
			<cac:Price>
				<cbc:PriceAmount currencyID="NOK">20.00</cbc:PriceAmount>
			</cac:Price>
		</cac:RequiredItemLocationQuantity>
		<cac:Item>
			<cbc:Description>Ballpoint pen comes in different colours and tip sizes</cbc:Description>
			...

The following properties are available:

 Document type

 Type and version of the UBL document. Automatically detected from the provided sample

 Profile and customization

 UBL Profile and UBL customization reference used to validate the UBL document. Automatically detected from the provided sample

 Disable UBL Validation

 Some business rules related to the document profile and customization are automatically validated. Click here to disable this validation.

By using UBL message definition, you will get benefit of UBL XSD validation and schematron validation for some of the UBL Profile and Customization (OpenPEPPOL, ePrior...)

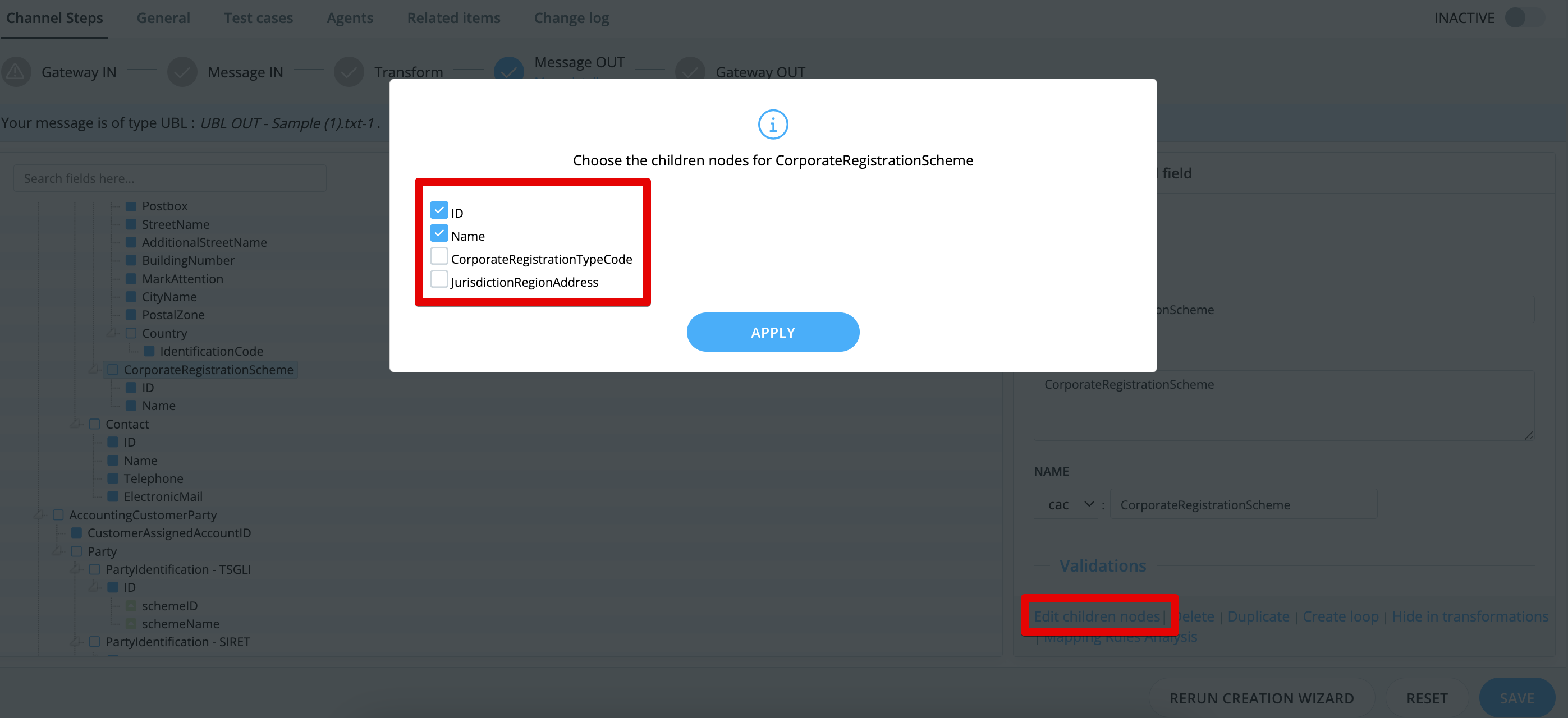

Note:You can get a suggestion while updating the message tree of UBL, CEFACT and XML with the fields or attributes to be added under the segment or the field as seen below:
